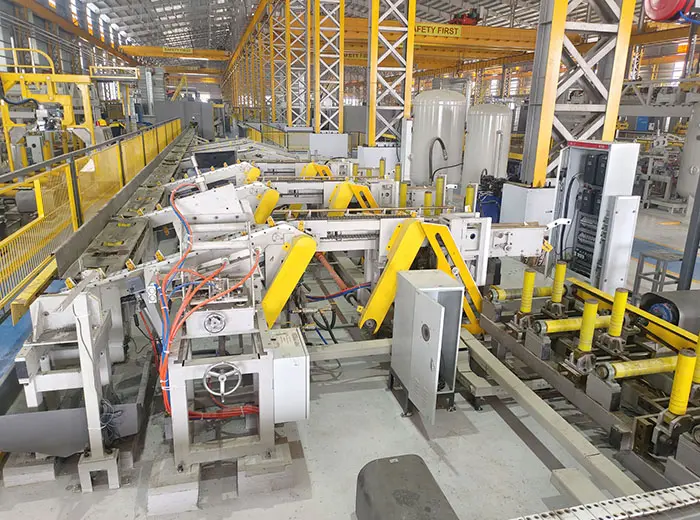

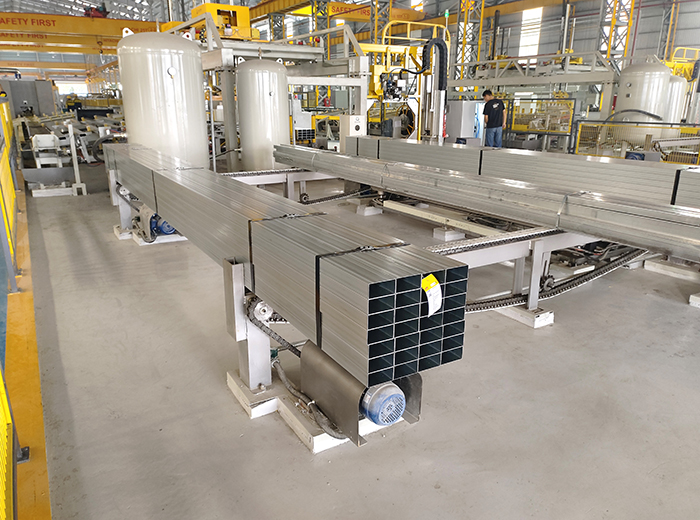

Automatic fork arm Stacking Machine

Function :It is used to pack automatically round tubes and square &rectangular profile. It possible to obtain either square,rectangular or hexagonal bundle .

The Feature

Fit to Round, Square and Rectangular pipes.Automatically,

1.All data set up at HMI panel.

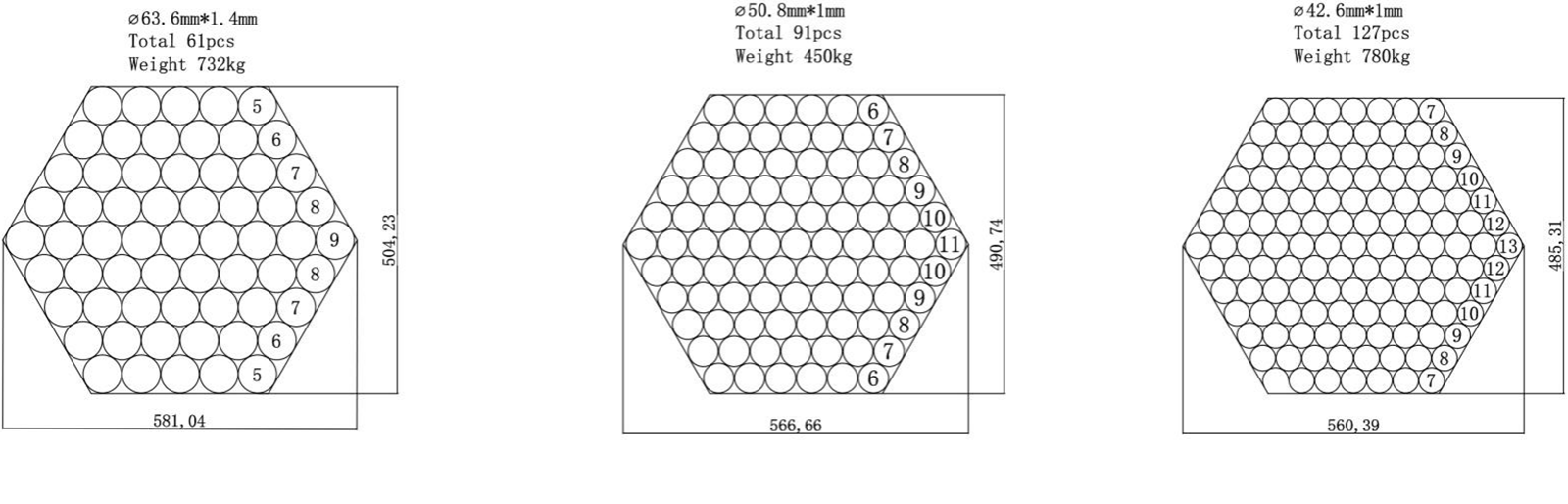

2.Multi packing style, such as quadrangle or hexagon style.

3.Quick packing speed

• 4.No damage for pipe’s surface.

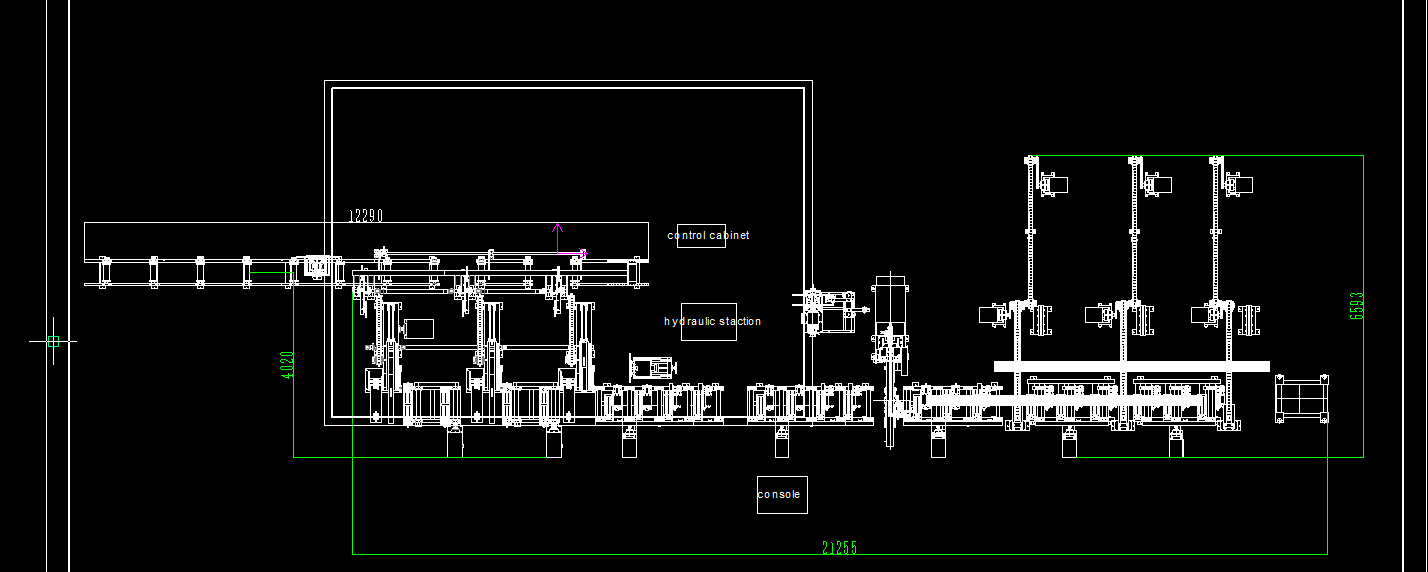

The composition of automatic fork arm Stacking Machine

Tube pickup unit

unit of tube alignment

Stacking unit

Aligning unit

The conveying roller table

Tube bundle storage unit

Water draining device

Electric control system

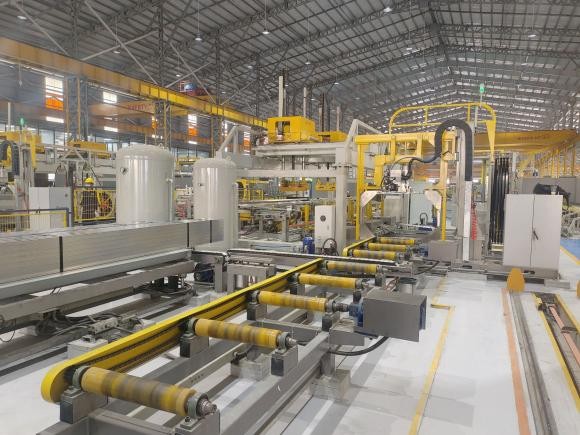

The description of the automatic stacking machine

Function：It is used to pack automatically round tubes and square &rectangular profile. It possible to obtain either square,rectangular.

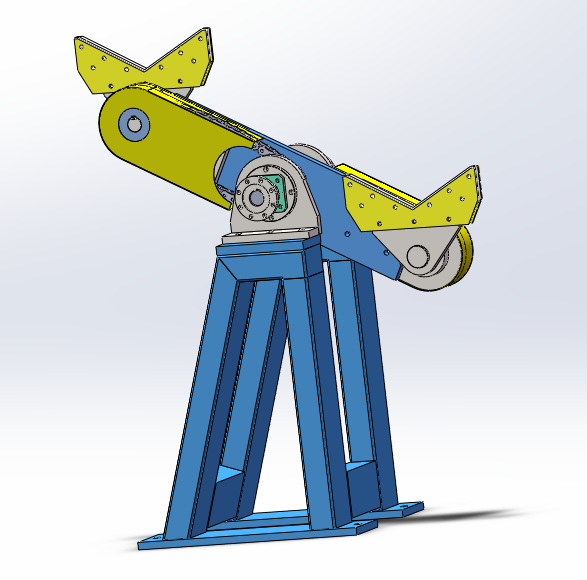

Tube pickup unit：

• The pick up unit delivers the tube come from the run out table to the the system of  tube alignment

• Quantity :3sets

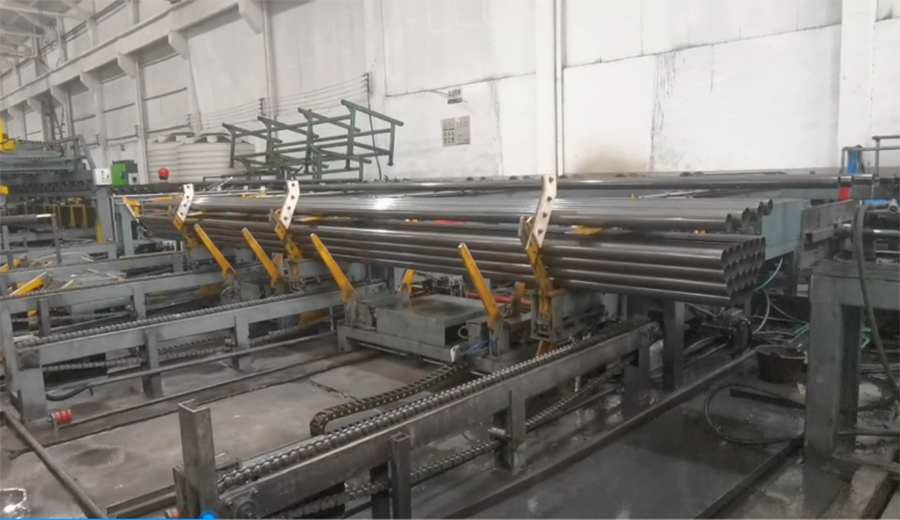

Unit of tube alignment：

• The tube are lined up by the chain in the unit of tube alignment .meanwhile , the tube of each layer of bundle is counted .

• The set tube of each layer will be delivered to the stacking frame by fork arms.

• Once the fork arms deliver the tube into stacking frame , the fork arms will return to original position.

• Quantity:3 sets

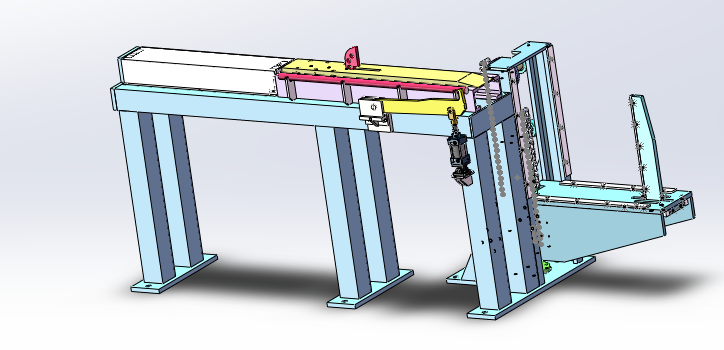

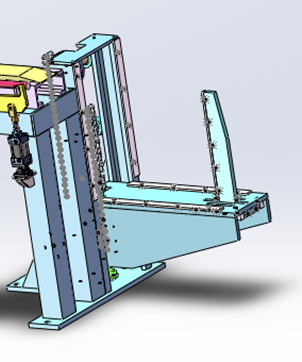

Stacking unit：

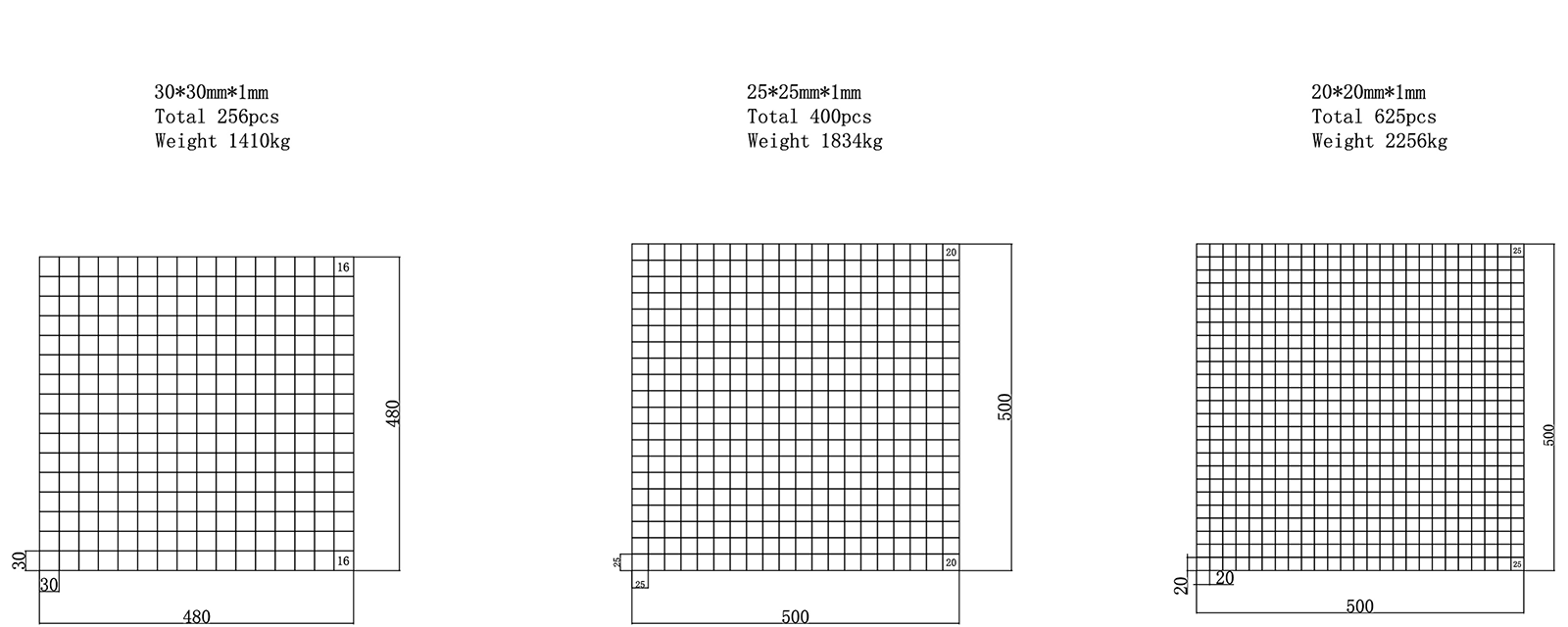

• The stacking unit can pack the tube into square,rectangular

• The stacking frame gets down with 1 layer tube automatically.

• The stacking sequence is completed then the stacking frame moves down until the conveying roller table position

• Quantity:3 sets

Aligning unit：

• The aligning plate can push and align the tube when the tube is being stacked.

• Forward/back by Air cylinder

• Extension:0--300mm

• Quantity:1 set

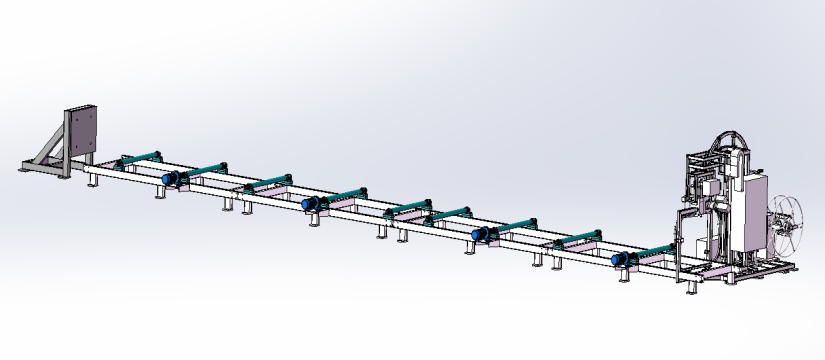

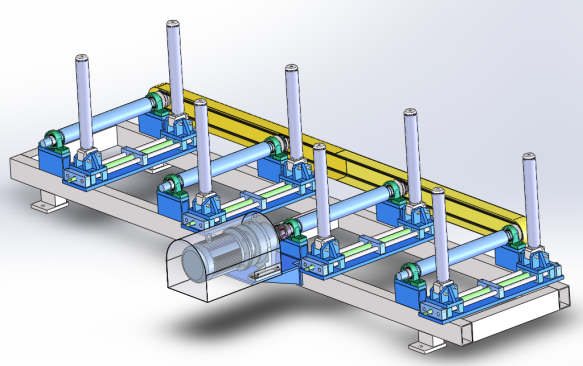

The conveying roller table

• The bundle is delivered to the automatic strapping machine by the conveying roller table .

• Conveying roller table are provided. The bottom rollers are centrally driven by gear motor.

• The lateral shoulder of conveying roller table can keep the bundle with proper shape.

• The length:12m

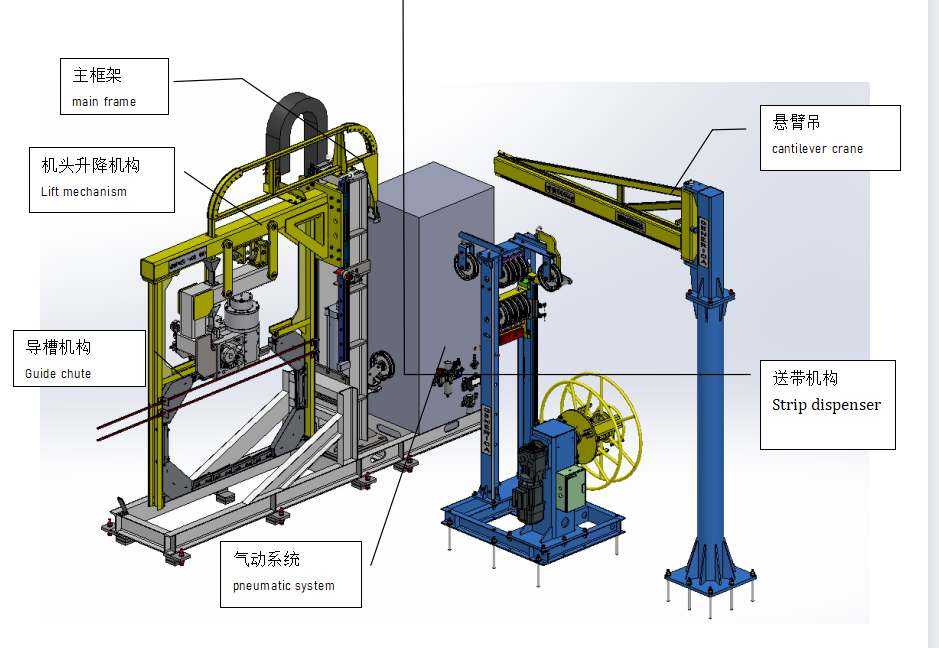

Automatic strapping machine

• The bundle is trapping by the automatic strapping machine .

• The number of strapping strip can be set as per customer’s requirement .

• The description of automatic strapping machine as below

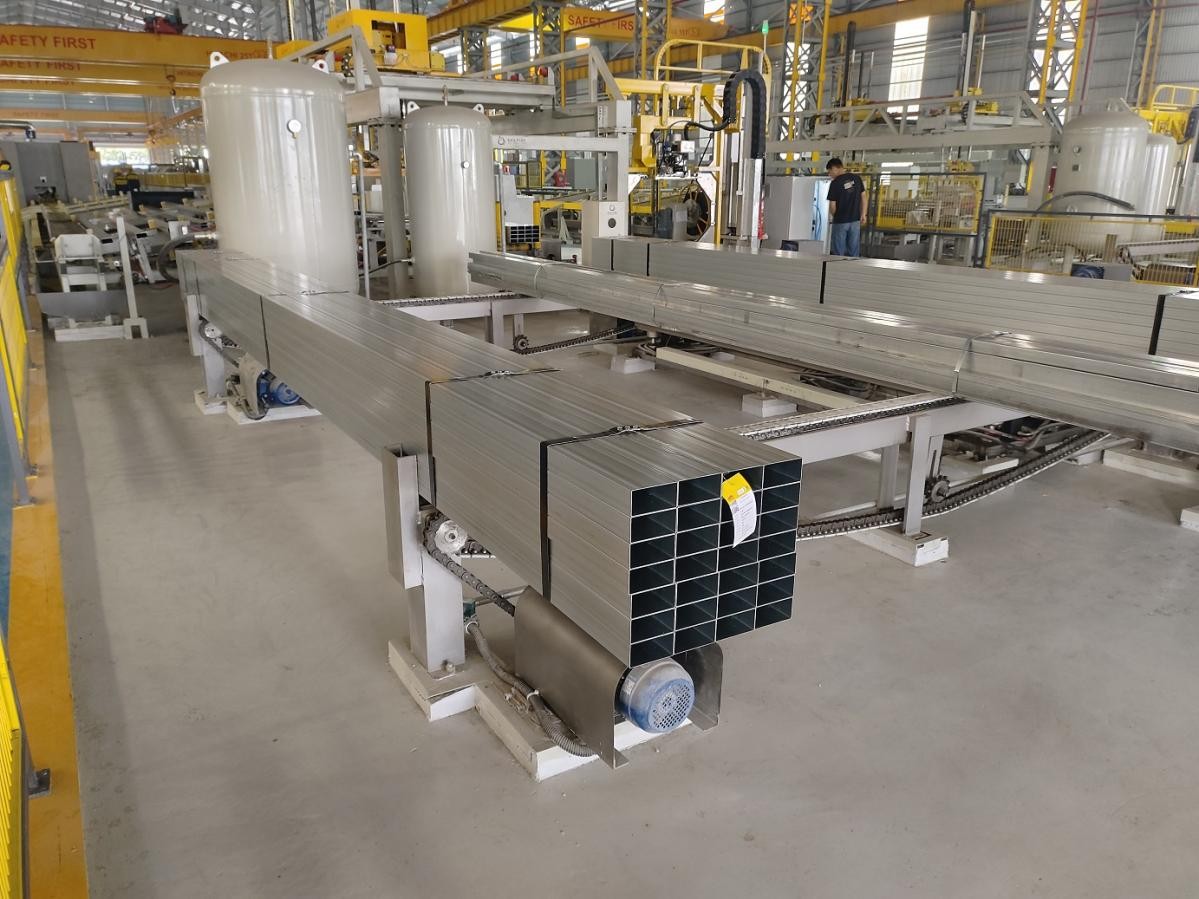

Bundle Conveying table：

• After bundle strapping is done , the bundle is delivered to the bundle storing unit

• Barrier: A barrier is provided at the end of conveying table.which can prevent the bundle from running out the conveying table.

• The length :7m

Tube bundle storage unit：

When the bundle reaches the end of conveying table end , the bundle is delivered to the bundle storage unit by transmission chain unit.

• The chain type storage unit is provided, where can store 10 bundles.

• The chain is driven by gear motor.

• Tube bundle storage unit is composed of 3 groups of transmission chain unit and  3 groups of chain type storage unit.

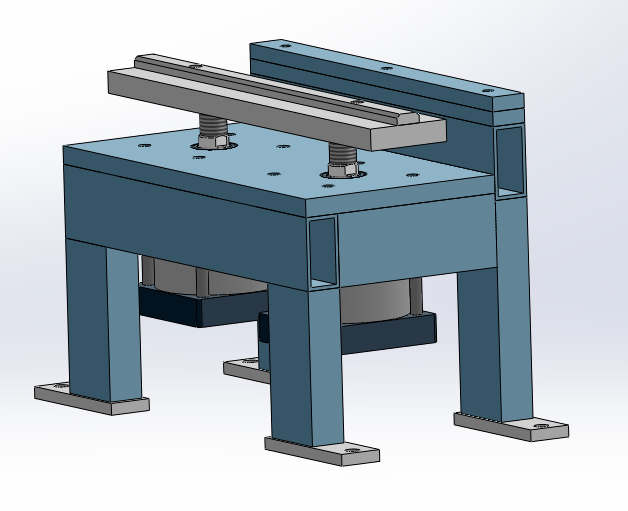

Water draining device:

3 set water draining devices are provided that raise up the bundle with a certain angle that permit the water to flow out.

Electric control system:

• The automatic bundle machine and automatic strapping machine is controlled by PLC.

• The movement of counting,stacking and strapping is realized automatically.

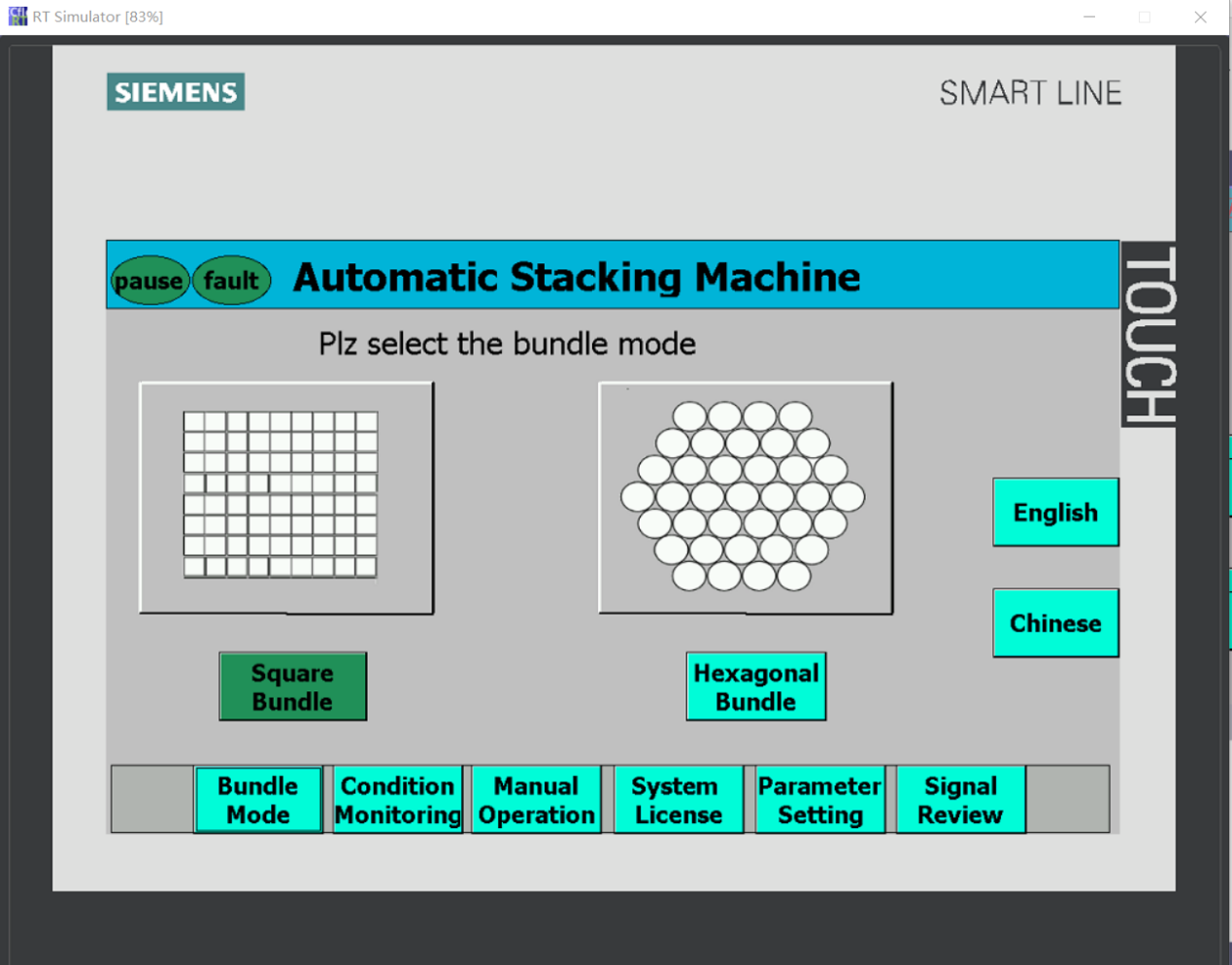

• The tube information and bundle shape and number of tube layer can be set at HMI of console.

• Data storage function is provided .

• Remote modules are provided for remote commissioning and diagnosis

Other item:

• set of hydraulic station and 1 set console are provided by seller

• The control line between equipment and console are provided by seller ,the power cable is provided by buyer.

The popular bundle shape of round tube
