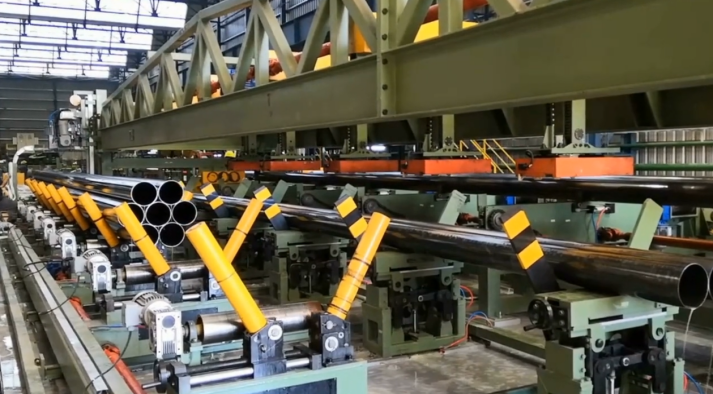

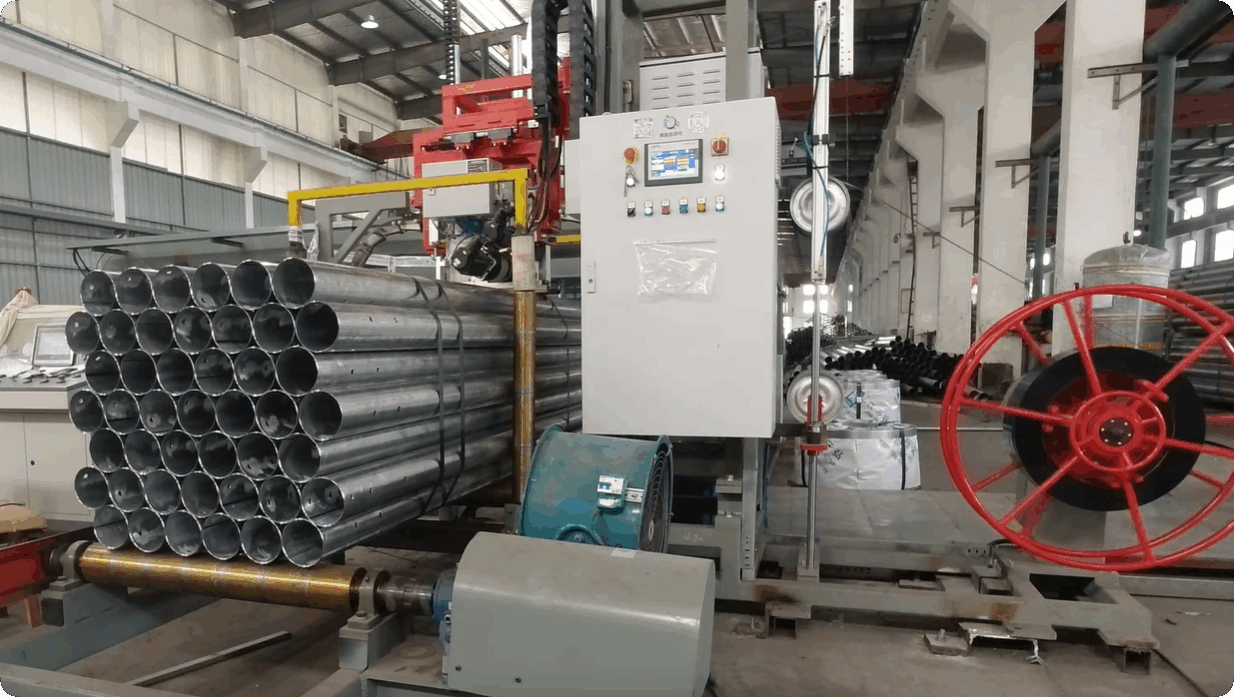

bundle machine
Function :It is used to pack automatically round tubes and square &rectangular profile. It possible to obtain either square,rectangular or hexagonal bundle .
Product Tags：
×
Get a Quote
Please fill in all * fields below, we will get back to you as soon as possible.
Description

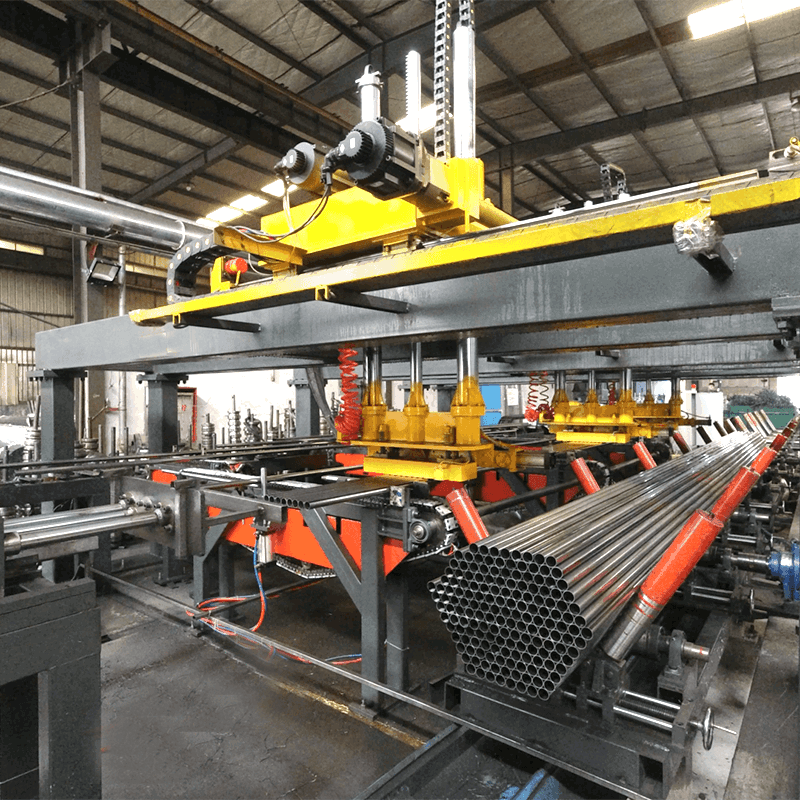

The automatic electromagnet disc stacking machine
Function :It is used to pack automatically round tubes and square &rectangular profile. It possible to obtain either square,rectangular or hexagonal bundle .
The Feature
Fit to Round, Square and Rectangular pipes.Automatically,
●All data set up at HMI panel.
●Multi packing style, such as quadrangle or hexagon style.
●Quick packing speed
●No damage for pipe’s surface.
The composition of automatic electromagnet disc stacking machine
①Drawing chain
②he steel frame of electromagnetic sucking discs system
③Motorized alignment rollers
④System of pipe calculation
⑤System of pipe alignment
⑥Electromagnetic sucking discs system
⑦Stacking frame
⑧Carriage of tube bundle
⑨Conveying roller table for bundle delivering
⑩Motorized chain type bundle stocking area.
⑪Electrical control system
