solid state HF welder
Description

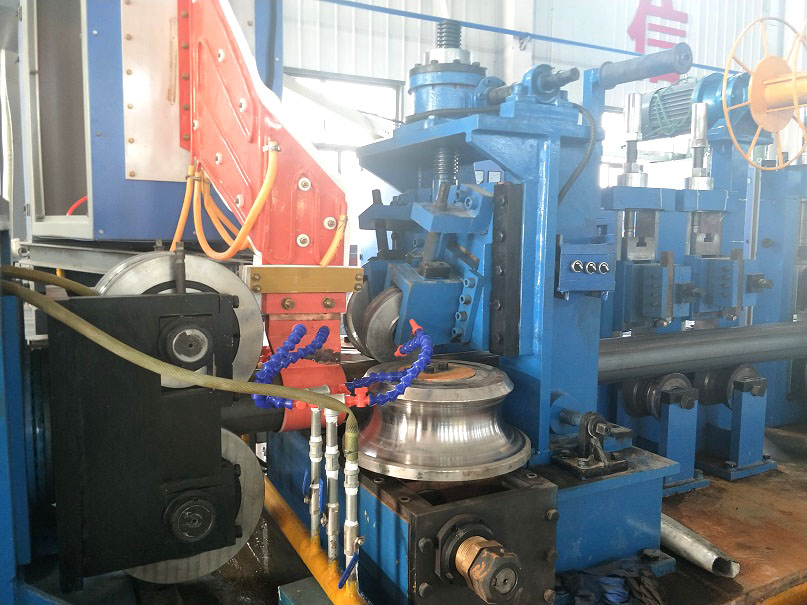

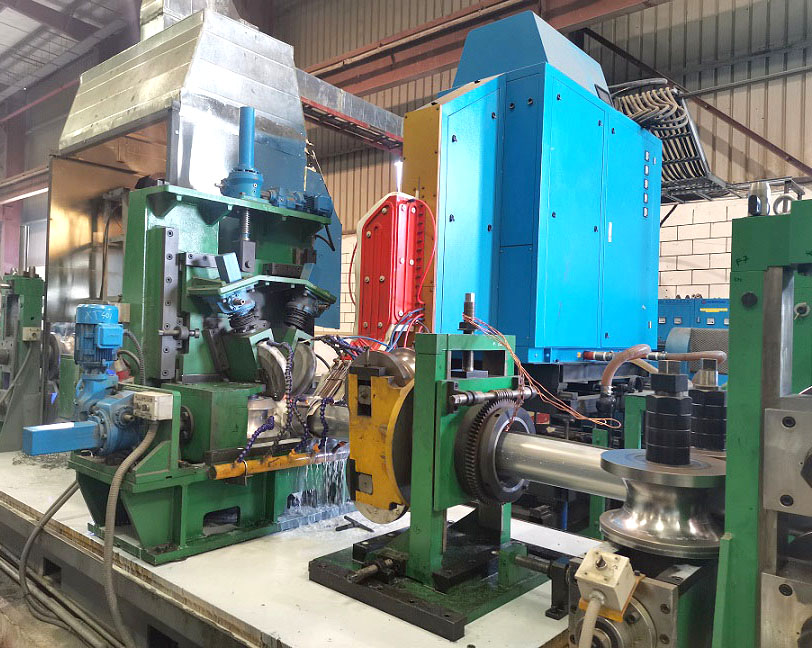

Solid state HF welder
Solid state HF welder is most important equipment of welded tube mill. The welding seam quality is determined by the solid state HF welder .
SANSO can provide both MOSFET solid state HF welder and IGBT solid state welder.
MOSFET solid state HF welder consisting of rectifier cabinet ,inverter cabinet ,water-water cooling device ,step down transformer,console and adjustable bracket
| Welder Model | Output Power | Rating Voltage | Rating Current | Design Frequency | Electricity Efficiency | Power Factor |
|---|---|---|---|---|---|---|
| GGP100-0.45-H | 100KW | 450V | 250A | 400~450kHz | ≥90% | ≥95% |
| GGP150-0.40-H | 150KW | 450V | 375A | 350~400kHz | ≥90% | ≥95% |
| GGP200-0.35-H | 200KW | 450V | 500A | 300~350kHz | ≥90% | ≥95% |
| GGP250-0.35-H | 250KW | 450V | 625A | 300~350kHz | ≥90% | ≥95% |
| GGP300-0.35-H | 300KW | 450V | 750A | 300~350kHz | ≥90% | ≥95% |
| GGP400-0.30-H | 400KW | 450V | 1000A | 200~300kHz | ≥90% | ≥95% |
| GGP500-0.30-H | 500KW | 450V | 1250A | 200~300kHz | ≥90% | ≥95% |
| GGP600-0.30-H | 600KW | 450V | 1500A | 200~300kHz | ≥90% | ≥95% |
| GGP700-0.25-H | 700KW | 450V | 1750A | 150~250kHz | ≥90% | ≥95% |
The advantage
●HIGHER EFFICIENCY :
Better efficiency as compared to Vacuum tube Welder
The efficiency of a solid state welder is greater than 85%
●EASY FAULT DIAGNOSIS:
Because the HMI shows the fault of HF welder , like the fault of 3#board ,over-temperature, fault of water pressure,the opening and closing of the cabinet’s door,the over-current , the fault of negative bridge mos and positive bridge mos. The fault can be found and solved soon, therefore, the downtime is reduced.
●EASY TROUBLESHOOTING & MAINTENANCE
They are easier to maintain because of their drawer style design . Troubleshooting and maintenance are also greatly simplified. This results in lower down time and contributes to enhanced productivity.
●THE COLD COMMISSIONING
The cold commissioning shall be fulfilled before shipment .So the perfect HF welder is assured.
